Mazatrol Matrix Control

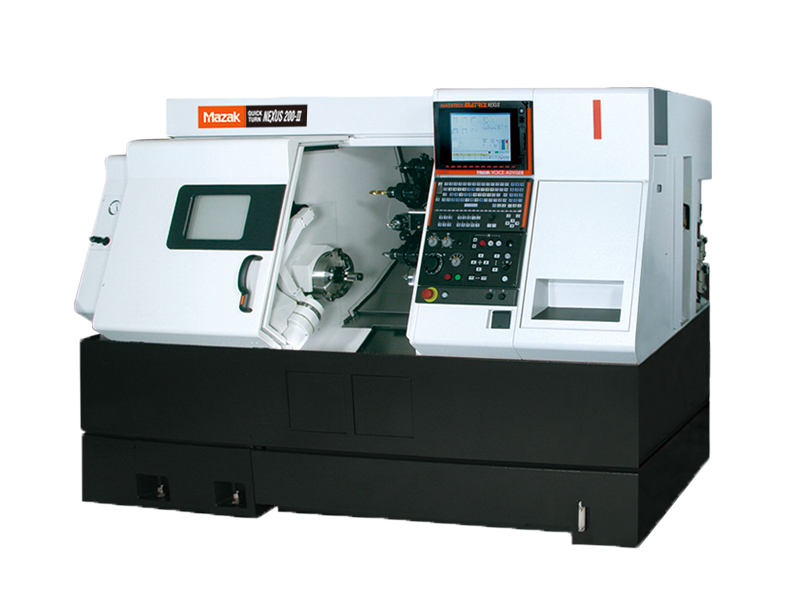

Mazak Quick Turn 200 Nexus

Specifications:

Year 2007

  • 12.1 Color LCD
  • USB i/F (2-Port)
  • LAN Port
  • User Macro ( Common Variables: 600 pairs) (MXN-036MT)
  • EIA/ISO Input Function (MXN-001MT)
  • Sequence Number Comparison
  • Stop Function (MNX-022MT)
  • Tool Eye (Automatic)
  • High Power Coolant (1.1 KW)(118PSI / 16 GPM)
  • Operator Door Interlock with Lock-Switch
  • Hydraulic Pressure Interlock
  • 12 Positions Drum Turret
  • Main Spindle Motor AC
  • (26KW) 35 HP)
  • Spindle Speed 5000 RPM
  • Spindle Bore DIA 77MM (3.0”)
  • 8” Thru hole Chuck B-208a615
  • 2.047” Bar Capacity
  • SMW-S UC2 210-52 Quick Jaw
  • Change Chuck 2.0” Bar (Note)
  • Chuck Open / Close Confirmation
  • Programmable Tailstock
  • Live center with Dead Quill
  • Mazak standard Color (Black / Gray)
  • Multitap Transformer
  • Windows XP Operating System
  • For Mazak machine Control
  • Automatic Chuck Jaws
  • Open / Close
  • Inverter Chip Con side 500U
  • Disposition. (Hinge) Factory Only
